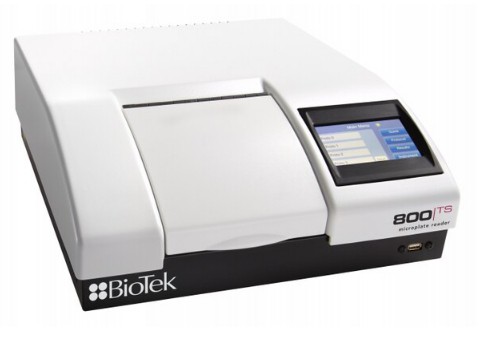

BioTek® 800™ TS Absorbance Reader with Gen5™ software
| BioTek® 800™ TS Absorbance Reader with Gen5™ software |
| Overview |

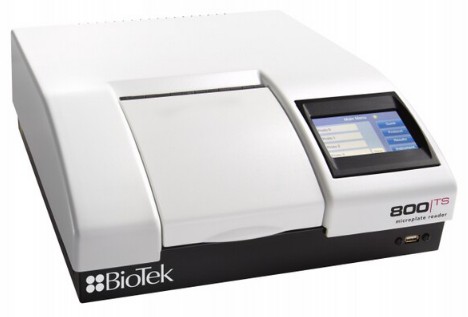

The 800 TS Absorbance Reader is an affordable, high quality microplate reader for assays in 6- to 384-well formats. The color touchscreen provides a visual user interface, making programming simple. The onboard software includes “quick read” and custom
protocols, with data viewed immediately after measure, followed by export to USB or to the compact printer. The software stores a history of programmed assays and recent plate readings for instant recall. The 800 TS can be configured to include
shaking, ideal for assays like short- or long-term kinetics, enabled under computer control via Gen5 Software. The 800 TS, used alongside the 50 TS Washer, makes an affordable system to automate many application workflows, including immunoassays,
cytotoxicity, enzyme assays, cell-based assays and more.
Gen5 software controls all BioTek automated microplate readers, configuring system and data collection parameters, analysis and a variety of reporting and exporting features. One-click
export to Excel® makes it fast and easy to export displayed data.
Features
◦ High quality, high performance at an affordable price
◦ Application versatility: ELISA, protein and other endpoint assays to kinetics and cell based assays
◦
Color touchscreen for quick, easy programming and operation
◦ USB flash drive for convenient data export
◦ High precision and accuracy for quality results
General Specifications
Detection modes Absorbance
Read methods Endpoint;
Kinetic, well area scanning (under computer control)
Microplate types 6-, 12-, 24-, 48-, 96-well microplates
Maximum plate height 0.9" (22.86 cm)
Shaking Linear
Software Gen5™ Software for external computer control and data analysis
Onboard
software Up to 40 user-programmable protocols; Quick menu; Create, edit or run protocols; Save results to USB thumb drive
Printer External USB printer (optional)
User interface 4.3" color LCD touchscreen display
Absorbance Specifications
Light
source Tungsten halogen
Detector Photodiode
Wavelength selection Filters
Wavelength range 400 to 750 nm
Dynamic range 0 to 4.0 OD (normal & rapid read modes); 0 to 3.0 OD (sweep read mode)
Resolution 0.0001 OD (via Gen5 control)
Filter
wheel capacity 5
Filters supplied 405, 450, 490, 630
OD accuracy 96-well plate, normal read mode, 405 nm (+1.0% +0.010 OD from 0.0 to 2.0 OD)
OD linearity 96-well plate, normal read mode, 405 nm (+1.0% from 0.0 to 2.0 OD; +3.0% from 2.0
OD to 3.0 OD)
OD repeatability 96-well plate, normal read mode, 405 nm (+0.5% +0.005 OD from 0.0 to 2.0 OD)
Physical Characteristics
Connectivity (1) USB Type B for computer control and (2) USB Type A for thumb drive and printer
Power
External 24VDC power supply compatible with 100-240VAC @50-60Hz
Power consumption 40 Watts
Dimensions 16.5 x 15 x 7 inches (41.9 x 38.1 x 17.8 cm)
Weight 18.5 lbs (8 kg) |
